SYSTEMS & OPTIONS


Steering system and drive

Depending on the surface, you can choose from one or three-wheel drive. The three-wheel drive four-way (side loader) is also possible, for the transport of long loads.


Mast and forks
Because the wheels are positioned in front of the fork carriage a truck-mounted forklift needs to move the mast and/or the forks forward to unload a truck.

Cargo-handling options

  • 3-wheel drive for operation on rough terrain, especially when you opt for larger wheels
  • 4-way operation to drive the forklift sideways, making it much easier to handle long loads
  • Reach forks extend to slide under a load (lifting capacity 2,000 or 2,500 kg; lifting height 2.2 to 4.05 m.)
  • Super-reach is the perfect choice if you want to unload a truck from one side only. It combines the patented Terberg scissor mast with reach forks
  • Scissor mast for extended reach (lifting capacity 2,000 or 2,500 kg; lifting height 2.2 to 4.05 m.)


General options

  • Short mast for low headroom buildings
  • Special lighting

Key features

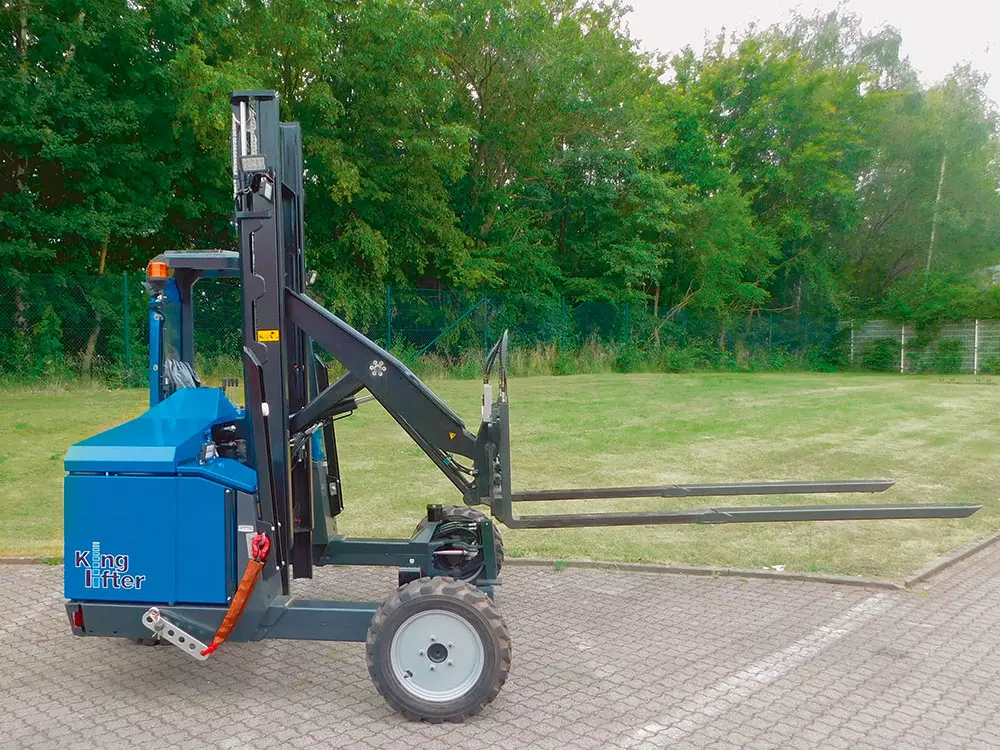

SUPERREACH (EXTENDED REACH)
SUPERREACH (EXTENDED REACH)

Combines the patented Terberg scissor system with telescopic forks. This provides an extended reach for loading and unloading, while the 4-way steering facilitates operation in narrow areas.

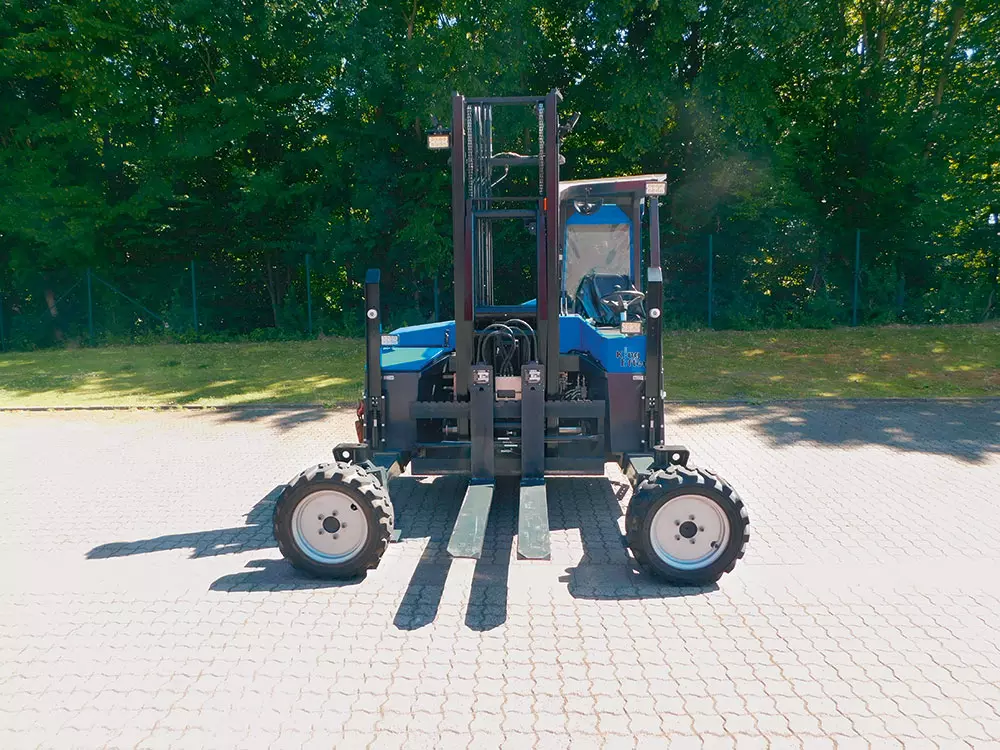

FOUR-WAY STEERING
FOUR-WAY STEERING

Four-way steering enables you to load and unload long loads in confined areas.

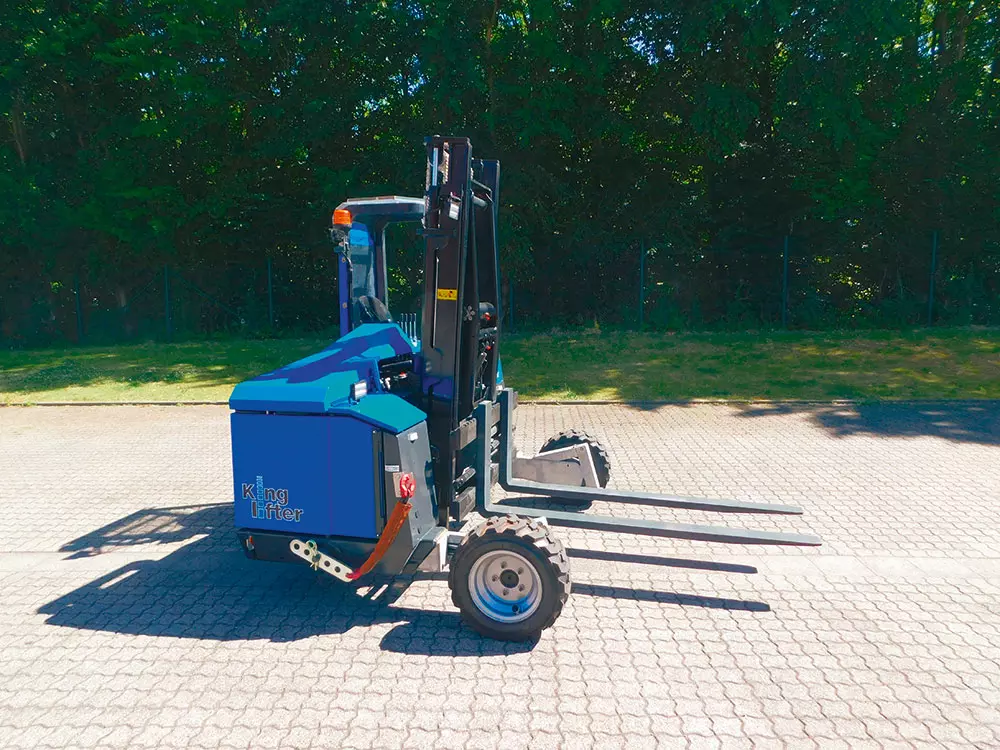

RETRACTABLE WHEEL ARMS
RETRACTABLE WHEEL ARMS

The hydraulically retractable wheel arms reduce the space required for truck-mounting and increase the reach while loading.

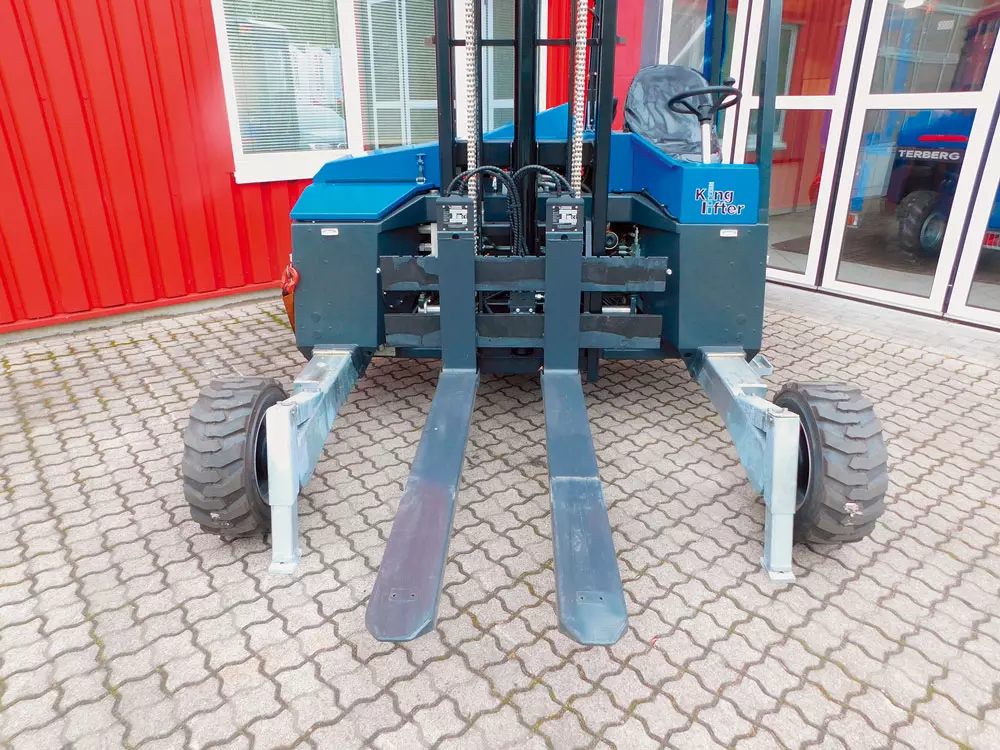

HYDRAULICALLY OPERATED PROPS
HYDRAULICALLY OPERATED PROPS

The hydraulically operated props enable you to set even the heaviest load down in front of the wheels.

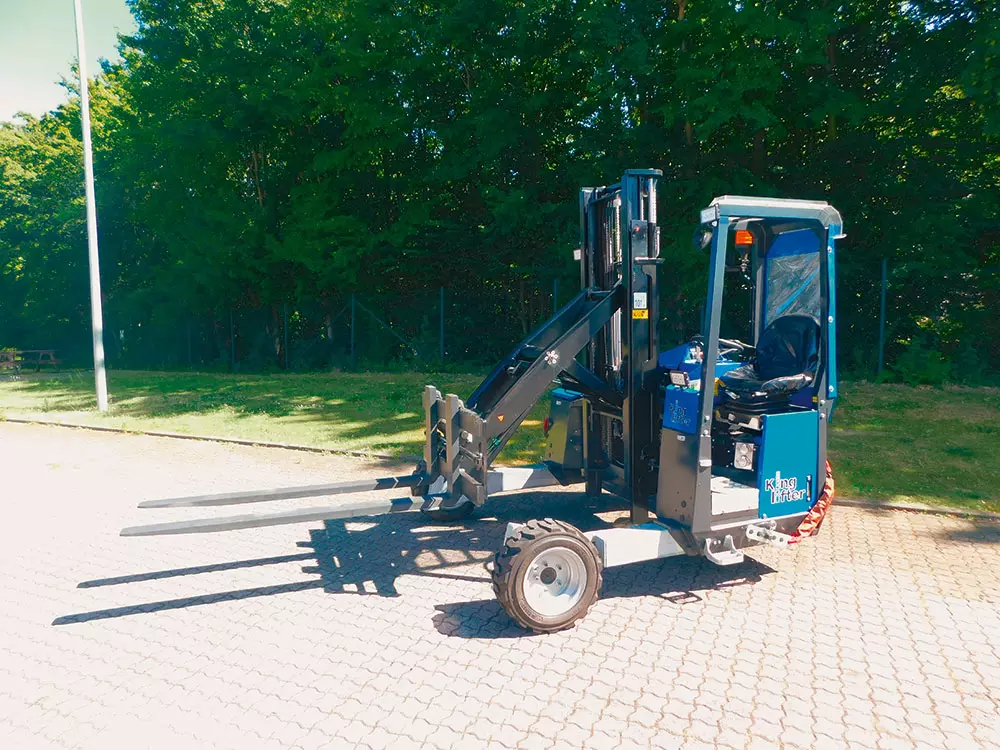

PATENTED SCISSOR SYSTEM
PATENTED SCISSOR SYSTEM

The patented Terberg scissor system can be combined with either forged forks or telescopic forks (SuperReach). The scissor system has a low weight, yet is very robust.

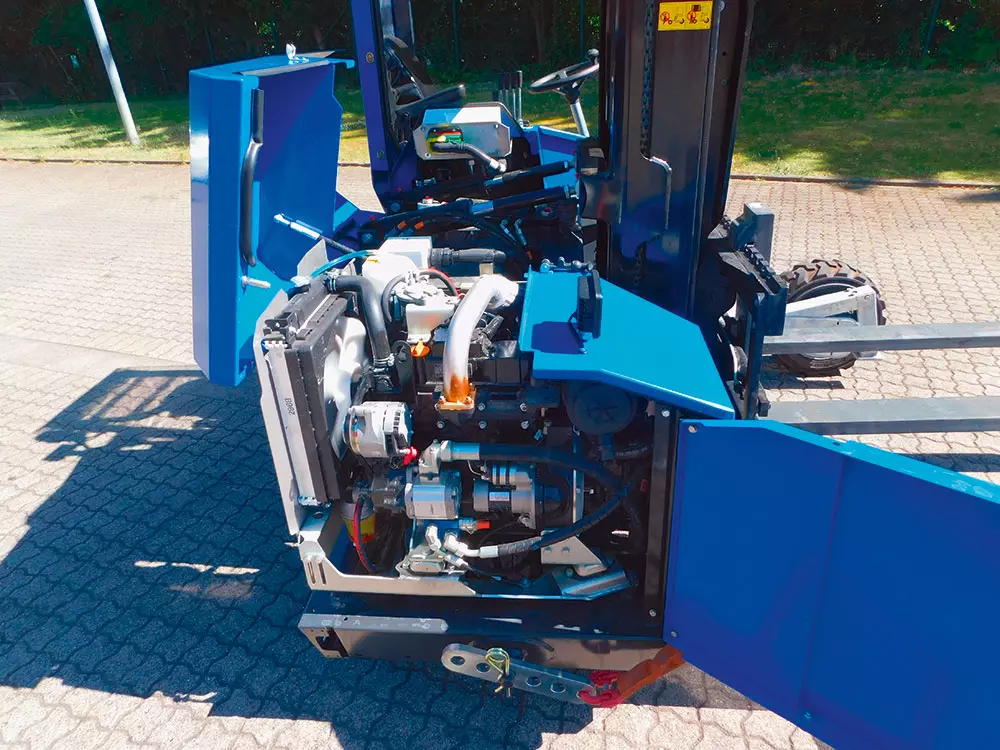

EASY SERVICING
EASY SERVICING

All components are easily accessible for servicing.
